STELLAR W
Ø388x63 mm Wall DIRECT/INDIRECT (WDI) LED CC HO (High output), 19 W, 618 lm, CCT/CRI: 930 Casambi, IP20, color: ochra / oak
5.2103.02M1.C670.OK
TECHNICAL DATA
  • Power 19 W CC HO (High output)
  • Flux 618 lm
  • CCT 3000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic not applicable
  • Mounting type Wall, direct/indirect (WDI)
  • Power supply 220-240V, 50-60Hz
  • Control Casambi
  • Protection Class I
  • IP IP20
  • Material Steel housing
  • Finishing powder coated: ochra, oak
TECHNICAL DRAWING
Dimensions:
388 mm

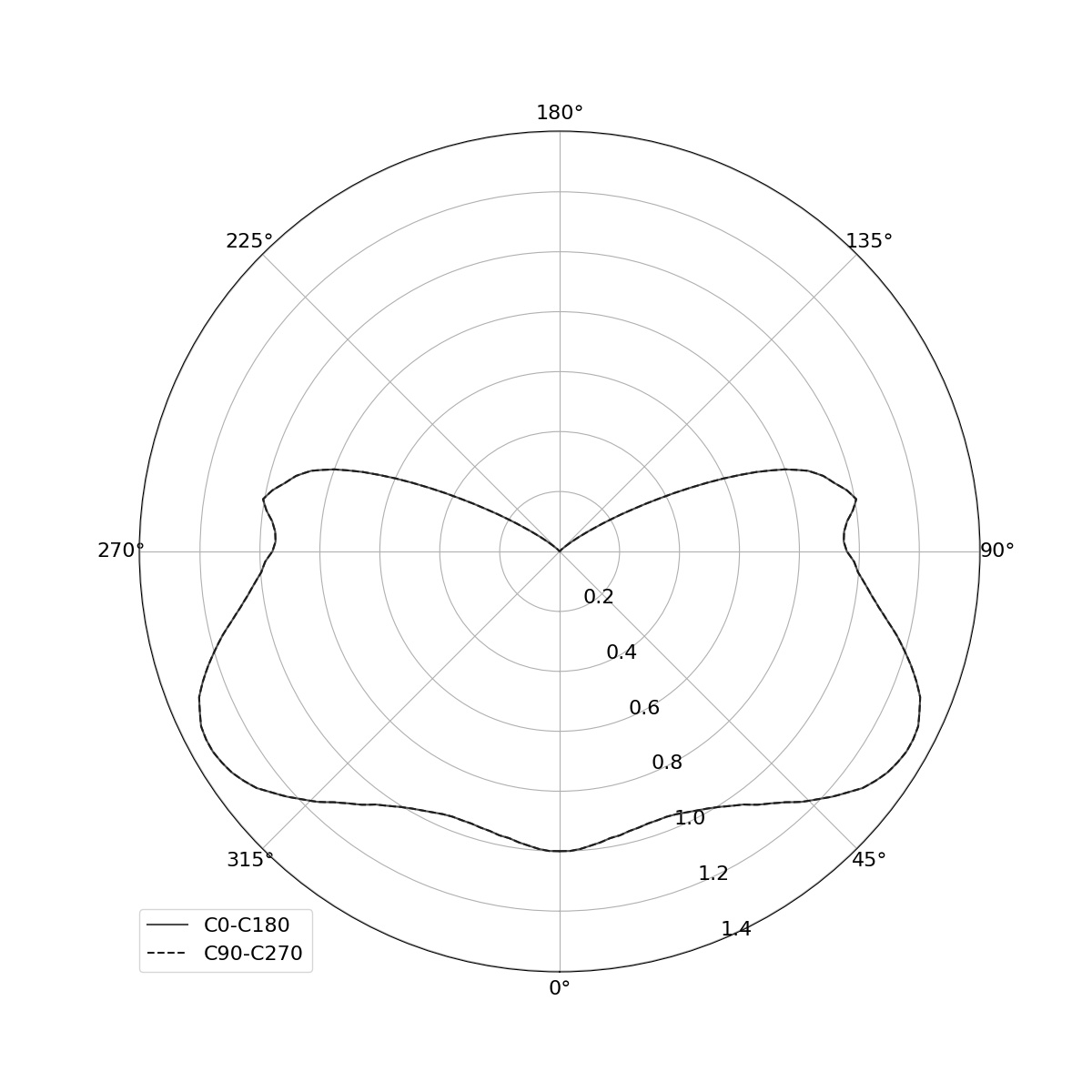

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
