STELLAR W
Ø520x78 mm Wall DIRECT/INDIRECT (WDI) LED CC HO (High output), 29 W, 927 lm, CCT/CRI: 930 Casambi, IP20, color: night / marrone
5.2103.03M1.C670.NM
TECHNICAL DATA
  • Power 29 W CC HO (High output)
  • Flux 927 lm
  • CCT 3000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic not applicable
  • Mounting type Wall, direct/indirect (WDI)
  • Power supply 220-240V, 50-60Hz
  • Control Casambi
  • Protection Class I
  • IP IP20
  • Material Steel housing
  • Finishing powder coated: night, marrone
TECHNICAL DRAWING
Dimensions:
520 mm

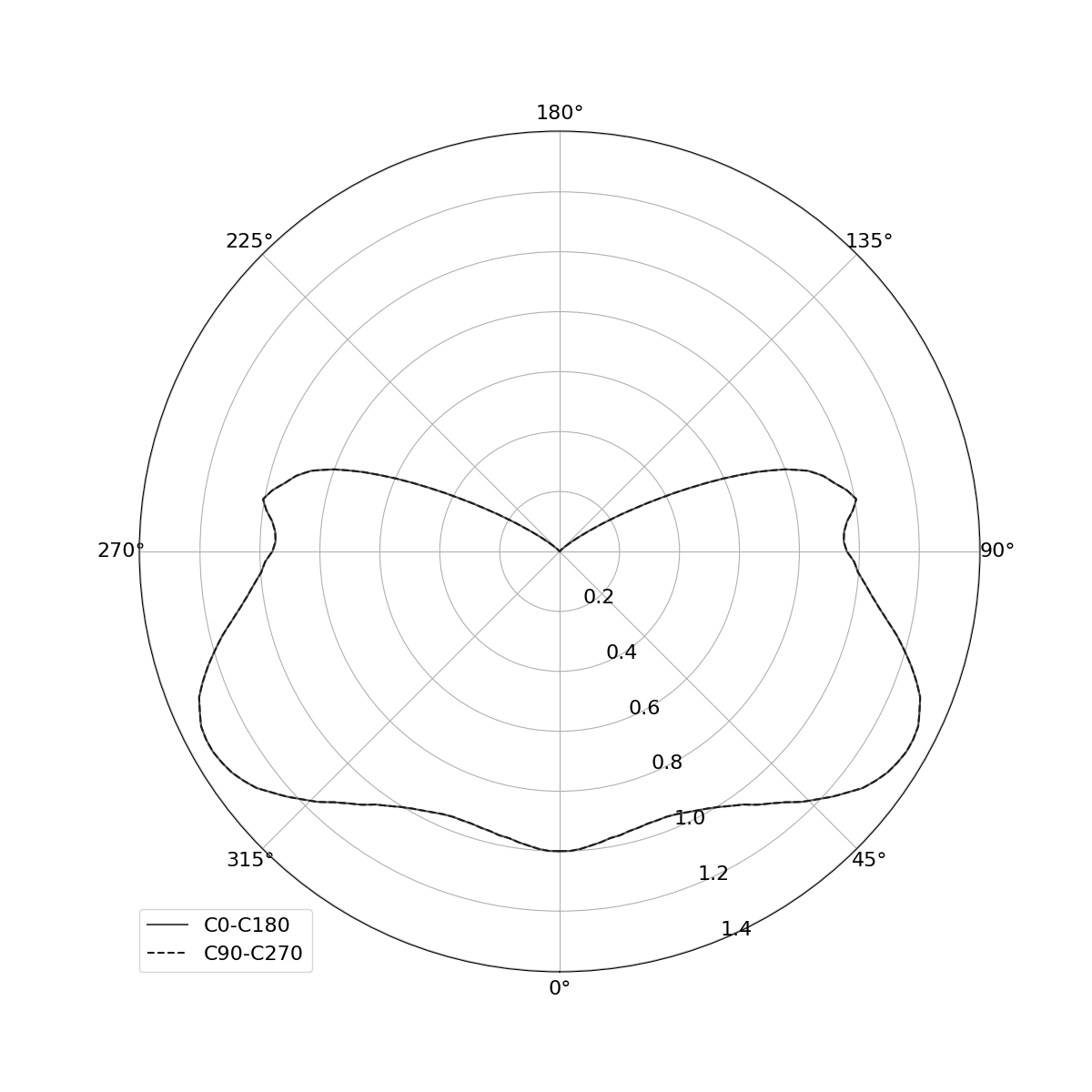

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
