KAMERTON S Louver Wide beam (60°) UGR<19
L2197x44x76 mm Suspended DIRECT (SD) LED CC HO (High output), 37,6 W, 4768 lm, CCT/CRI: 930 ON/OFF, IP20, color: volcano
5.3201.04D1.167W.V0
TECHNICAL DATA
  • Power 37,6 W CC HO (High output)
  • Flux 4768 lm
  • CCT 3000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Wide beam (UGR<19)
  • Mounting type Suspended, direct (SD)
  • Power supply 220-240V, 50-60Hz
  • Control ON/OFF
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: volcano
TECHNICAL DRAWING
Dimensions:
2197x44 mm

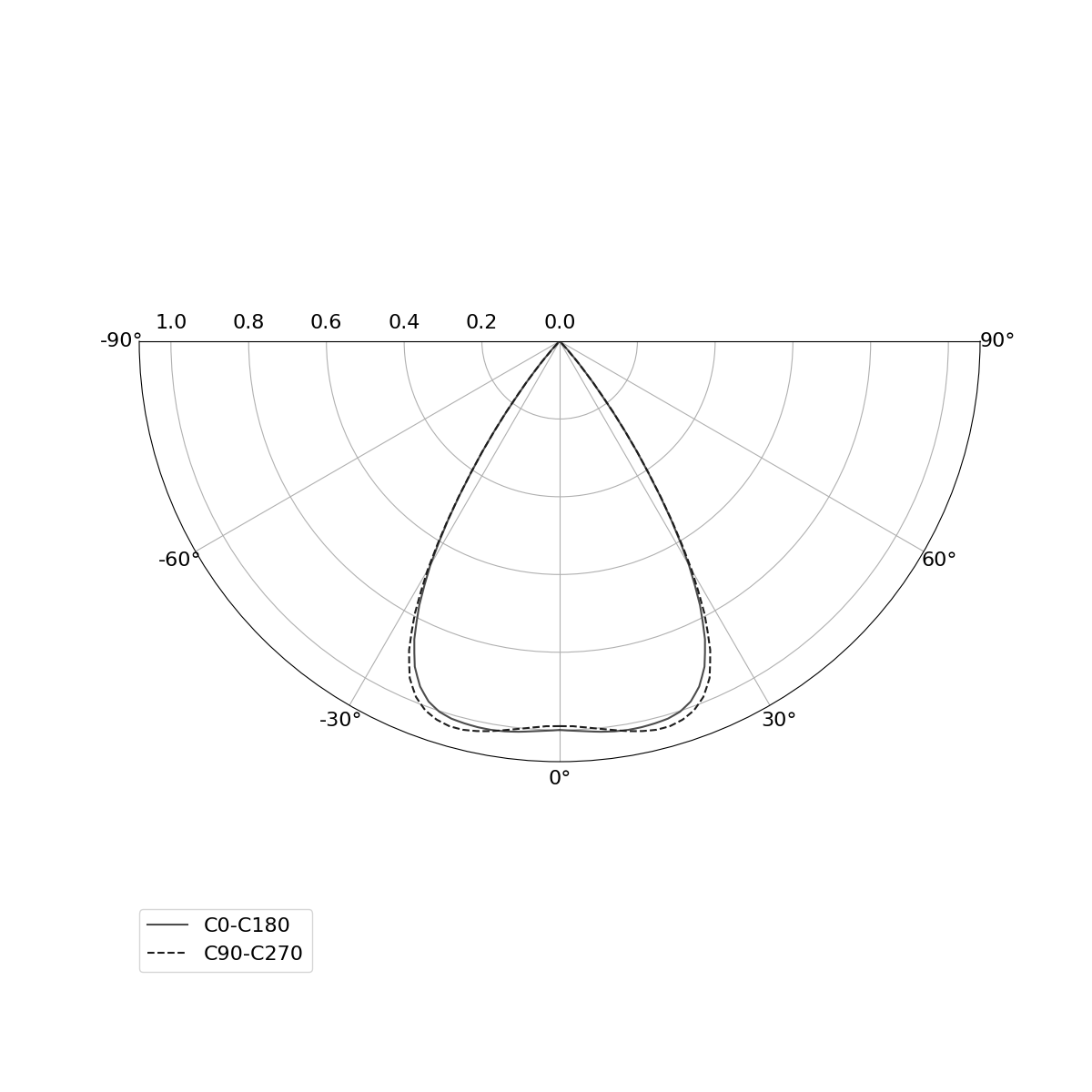

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
back

Specifications

  • Catalog card
  • Declaration of Conformity

Photometric / 3D

  • LDT file
  • 3D file

Mounting instructions

  • Mounting instructions
