KAMERTON S Louver Wide beam (60°) UGR<19
L2197x44x76 mm Suspended DIRECT (SD) LED CC HO (High output), 37,6 W, 5100 lm, CCT/CRI: 940 DALI, IP20, color: white (RAL9016)
5.3201.04D1.277W.40
TECHNICAL DATA
  • Power 37,6 W CC HO (High output)
  • Flux 5100 lm
  • CCT 4000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Wide beam (UGR<19)
  • Mounting type Suspended, direct (SD)
  • Power supply 220-240V, 50-60Hz
  • Control DALI
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: white (RAL9016)
TECHNICAL DRAWING
Dimensions:
2197x44 mm

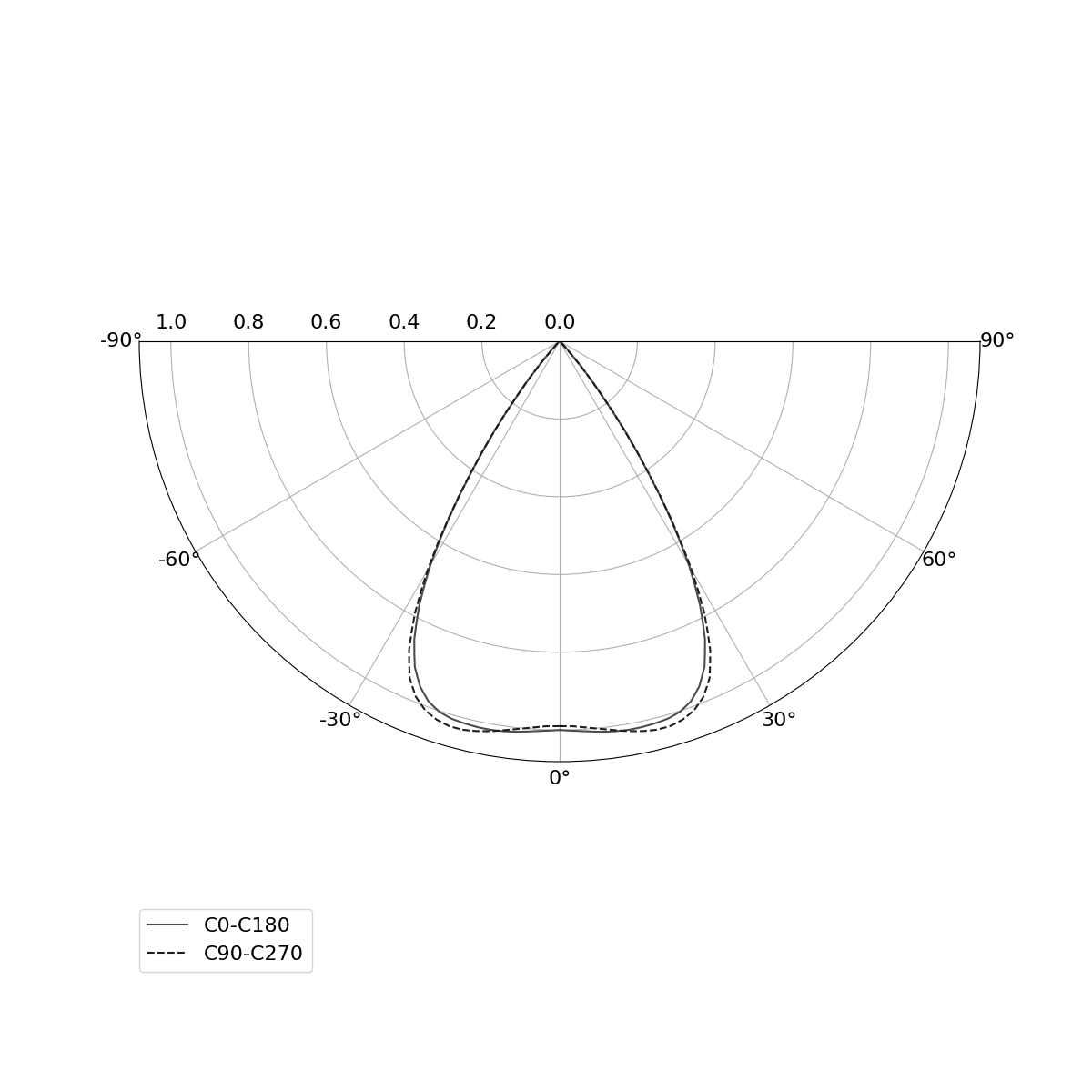

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
