KAMERTON S Louver Wide beam (60°) UGR<19
L1637x44x76 mm Suspended DIRECT/INDIRECT (SDI) LED CC HO (High output), 28,2+16,8 W, 3576+1860 lm, CCT/CRI: 930 ON/OFF, IP20, color: sage
5.3201.03I1.167W.A0
TECHNICAL DATA
  • Power 28,2+16,8 W CC HO (High output)
  • Flux 5436 lm
  • CCT 3000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Wide beam (UGR<19)
  • Mounting type Suspended, direct/indirect (SDI)
  • Power supply 220-240V, 50-60Hz
  • Control ON/OFF
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: sage
TECHNICAL DRAWING
Dimensions:
1637x44 mm

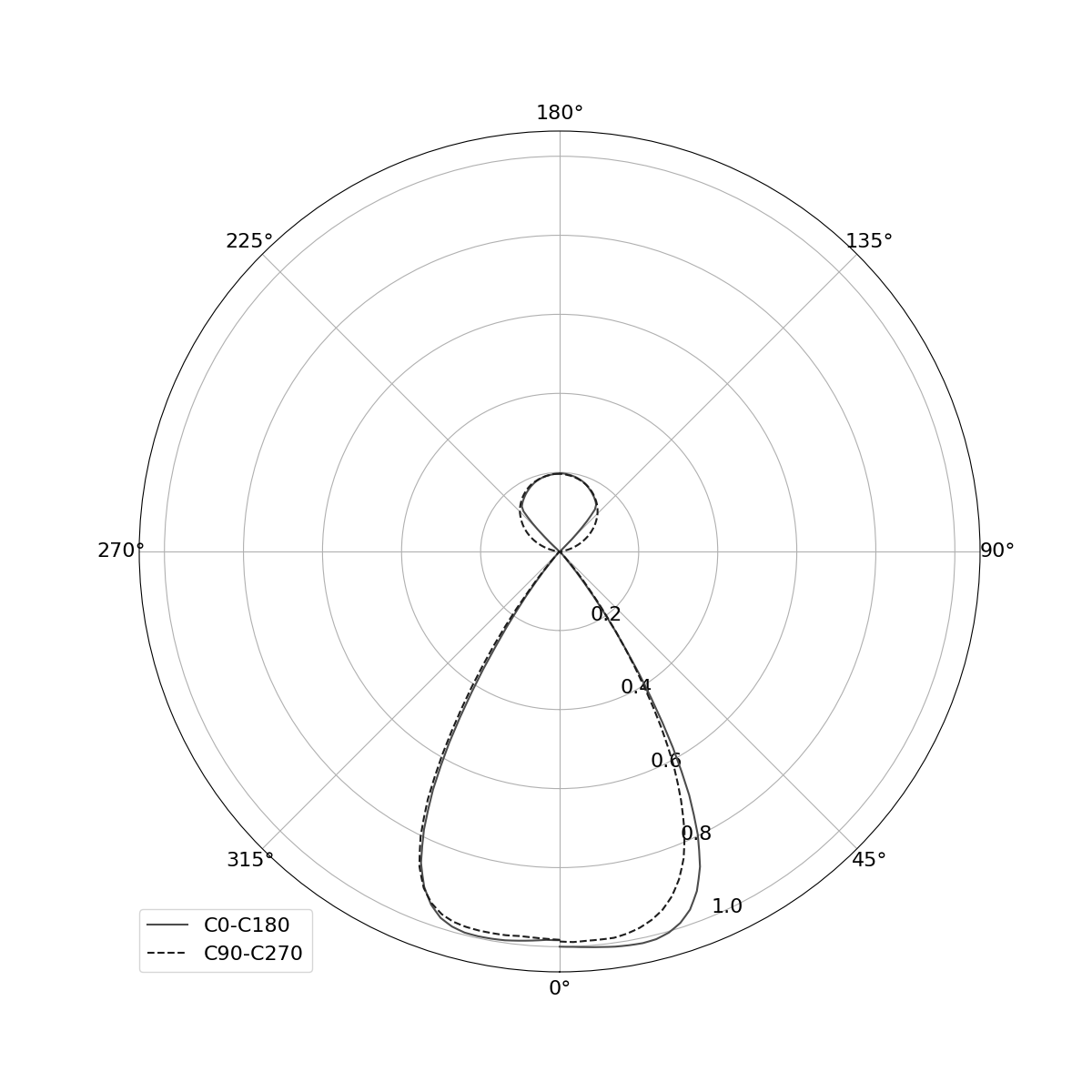

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
