KAMERTON S Line Linear optic (satine)
L1077x44x76 mm Suspended DIRECT (SD) LED CC HO (High output), 20,2 W, 2511 lm, CCT/CRI: 930 DALI, IP20, color: night
5.3202.02D1.267L.N0
TECHNICAL DATA
  • Power 20,2 W CC HO (High output)
  • Flux 2511 lm
  • CCT 3000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Linear optic (satine)
  • Mounting type Suspended, direct (SD)
  • Power supply 220-240V, 50-60Hz
  • Control DALI
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: night
TECHNICAL DRAWING
Dimensions:
1077x44 mm

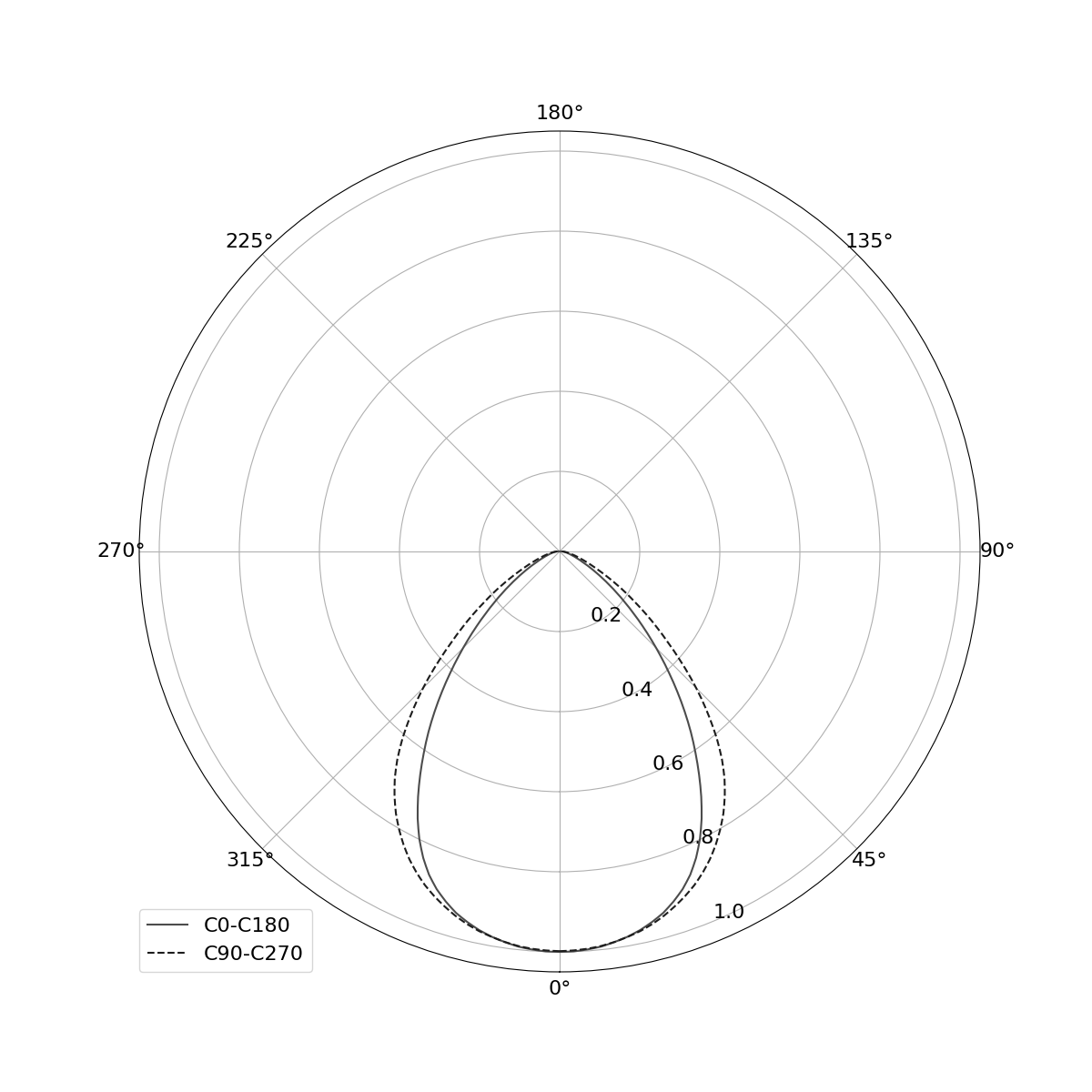

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
