KAMERTON S Line Linear optic (satine)
L1077x44x76 mm Suspended DIRECT (SD) LED CC HO (High output), 20,2 W, 2685 lm, CCT/CRI: 940 DALI, IP20, color: white (RAL9016)
5.3202.02D1.277L.40
TECHNICAL DATA
  • Power 20,2 W CC HO (High output)
  • Flux 2685 lm
  • CCT 4000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Linear optic (satine)
  • Mounting type Suspended, direct (SD)
  • Power supply 220-240V, 50-60Hz
  • Control DALI
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: white (RAL9016)
TECHNICAL DRAWING
Dimensions:
1077x44 mm

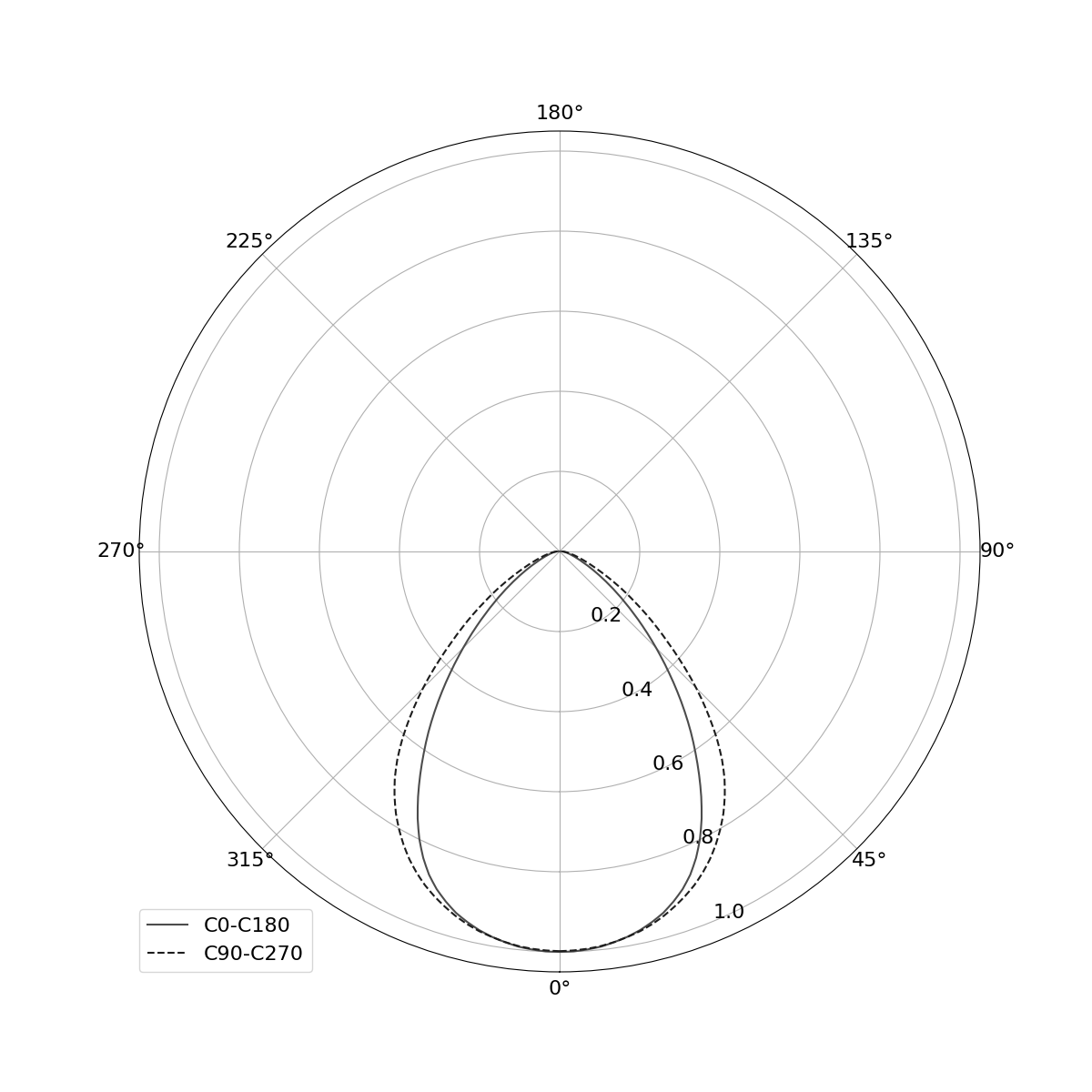

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
back

Specifications

  • Catalog card
  • Declaration of Conformity

Photometric / 3D

  • LDT file
  • 3D file

Mounting instructions

  • Mounting instructions
