KAMERTON S Line Linear optic (satine)
L1077x44x76 mm Suspended DIRECT/INDIRECT (SDI) LED CC HO (High output), 20,2+10,1 W, 2511+1116 lm, CCT/CRI: 930 ON/OFF, IP20, color: black (RAL9005)
5.3202.02I1.167L.50
TECHNICAL DATA
  • Power 20,2+10,1 W CC HO (High output)
  • Flux 3627 lm
  • CCT 3000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Linear optic (satine)
  • Mounting type Suspended, direct/indirect (SDI)
  • Power supply 220-240V, 50-60Hz
  • Control ON/OFF
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: black (RAL9005)
TECHNICAL DRAWING
Dimensions:
1077x44 mm

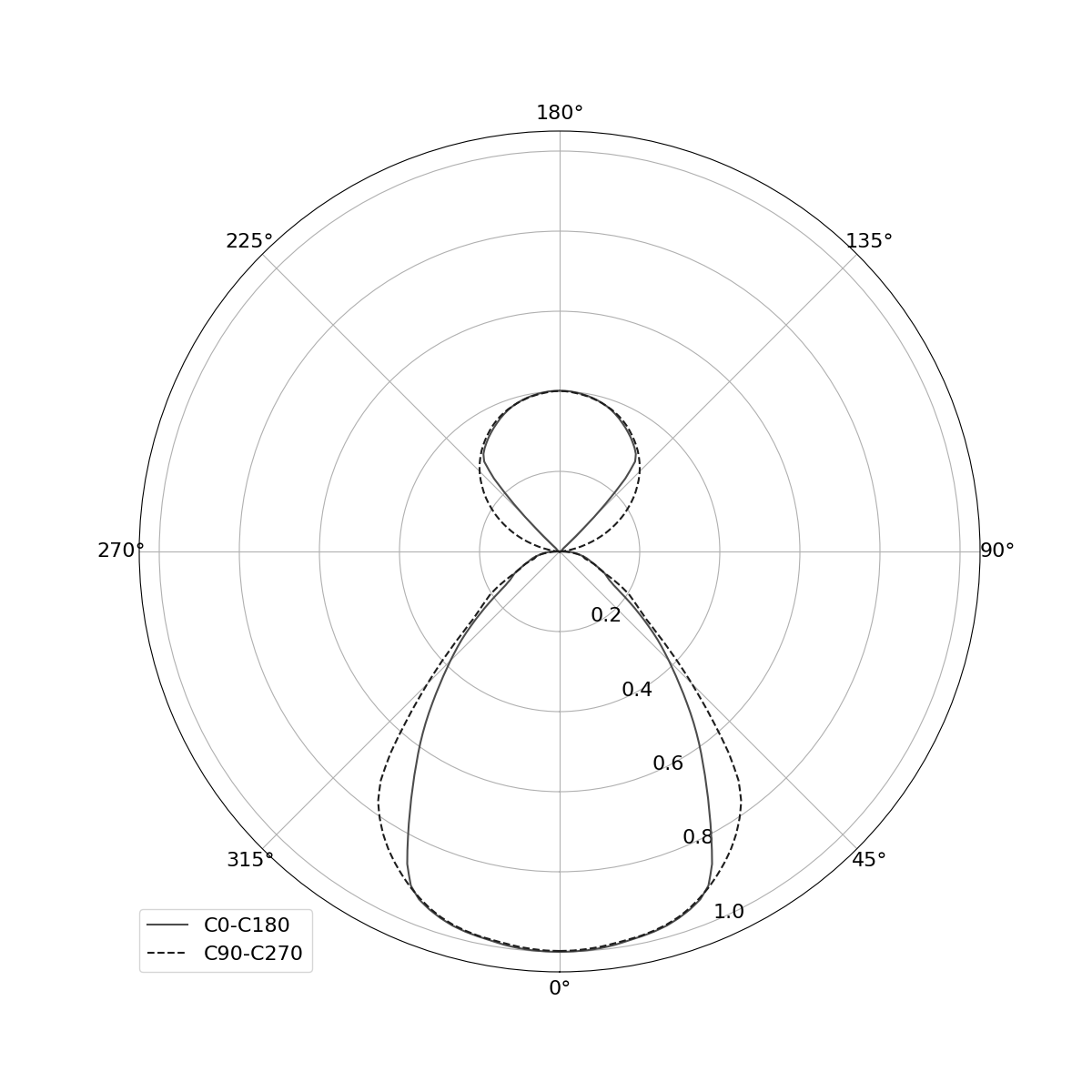

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
