KAMERTON S Line Dark Microcrystal
L1077x44x76 mm Suspended DIRECT/INDIRECT (SDI) LED CC HO (High output), 20,2+10,1 W, 1381+1116 lm, CCT/CRI: 930 DALI, IP20, color: graphite (RAL7024)
5.3202.02I1.2678.H0
TECHNICAL DATA
  • Power 20,2+10,1 W CC HO (High output)
  • Flux 2497 lm
  • CCT 3000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Dark Microcrystal
  • Mounting type Suspended, direct/indirect (SDI)
  • Power supply 220-240V, 50-60Hz
  • Control DALI
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: graphite (RAL7024)
TECHNICAL DRAWING
Dimensions:
1077x44 mm

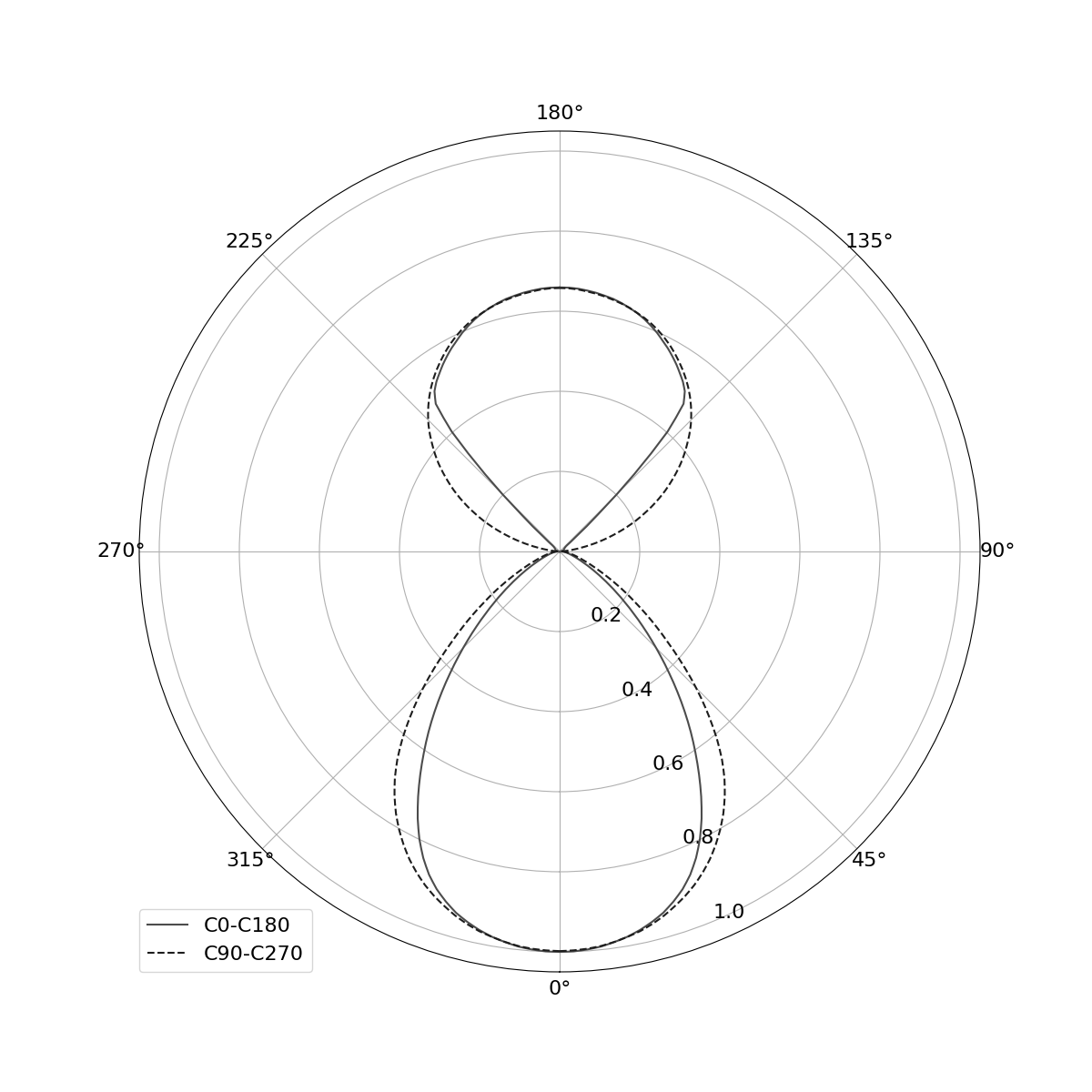

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
back

Specifications

  • Catalog card
  • Declaration of Conformity

Photometric / 3D

  • LDT file
  • 3D file

Mounting instructions

  • Mounting instructions
