KAMERTON S Line
Dark Microcrystal
L1637x44x76 mm
Suspended DIRECT/INDIRECT (SDI)
LED CV HO (High output), 33,6+16,8 W, 2141+1730 lm, CCT/CRI: 922-930
Dim to warm, IP20, color: white (RAL9016)
5.3202.03I1.WA38.40
.png?locale=en "white (RAL9016)")
TECHNICAL DATA
-
Power 33,6+16,8 W CV HO (High output)
-
Flux 3871 lm
-
CCT 2700-3000K
-
CRI >90
-
SDCM ≤3
-
Durability of LED sources 50.000 h L80 B10
-
Diffuser / Optic Dark Microcrystal
-
Mounting type Suspended, direct/indirect (SDI)
-
Power supply 220-240V, 50-60Hz
-
Control Dim to warm
-
Protection Class I
-
IP IP20
-
Material Extruded aluminium profile
-
Finishing powder coated: white (RAL9016)
TECHNICAL DRAWING
Dimensions:
1637x44
mm

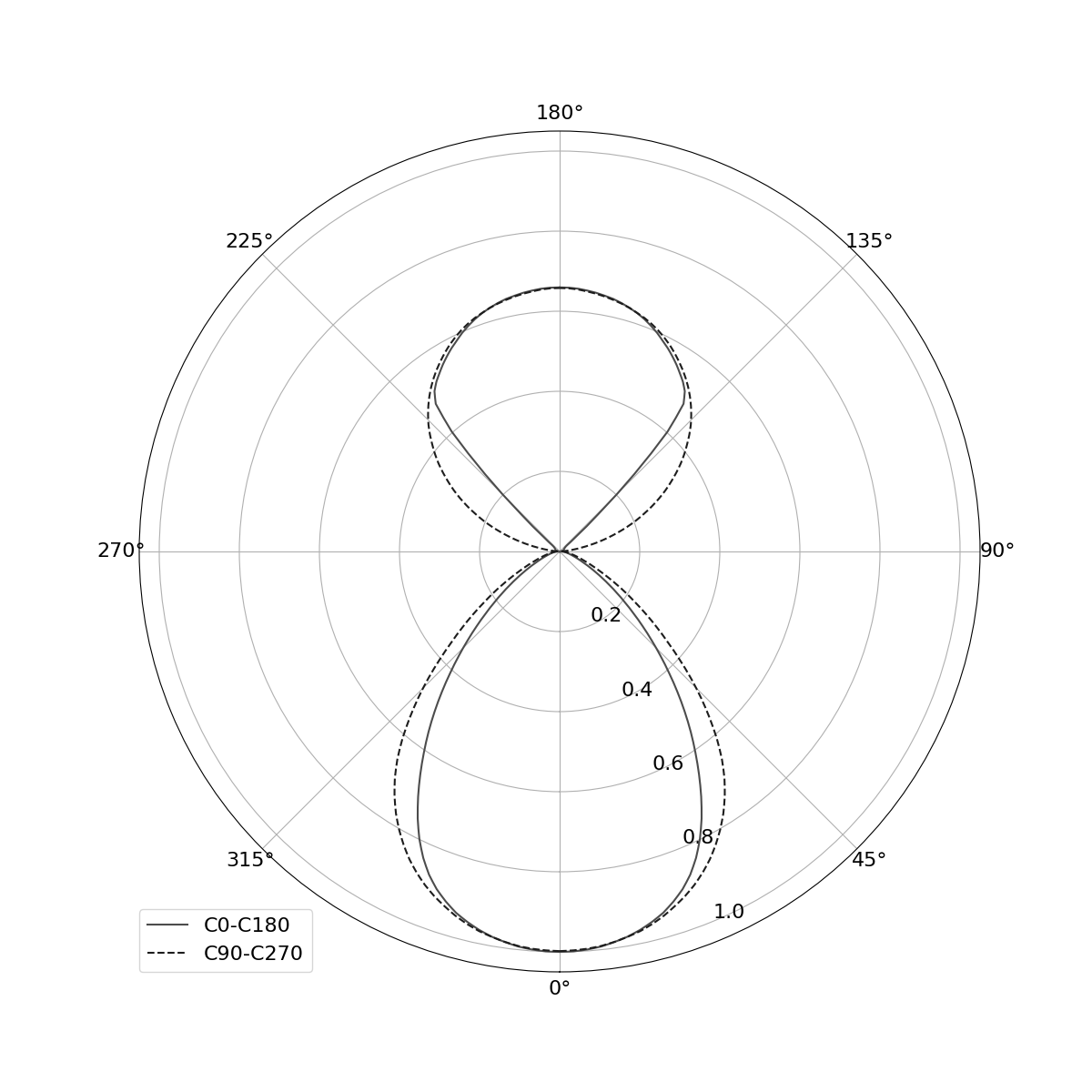

PHOTOMETRIC DATA
Accessories
(ordered separately)
