KAMERTON S Line Dark Microcrystal
L1637x44x76 mm Suspended DIRECT/INDIRECT (SDI) LED CC HO (High output), 33,6+16,8 W, 2461+1990 lm, CCT/CRI: 940 Casambi, IP20, color: sage
5.3202.03I1.C778.A0
TECHNICAL DATA
  • Power 33,6+16,8 W CC HO (High output)
  • Flux 4451 lm
  • CCT 4000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Dark Microcrystal
  • Mounting type Suspended, direct/indirect (SDI)
  • Power supply 220-240V, 50-60Hz
  • Control Casambi
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: sage
TECHNICAL DRAWING
Dimensions:
1637x44 mm

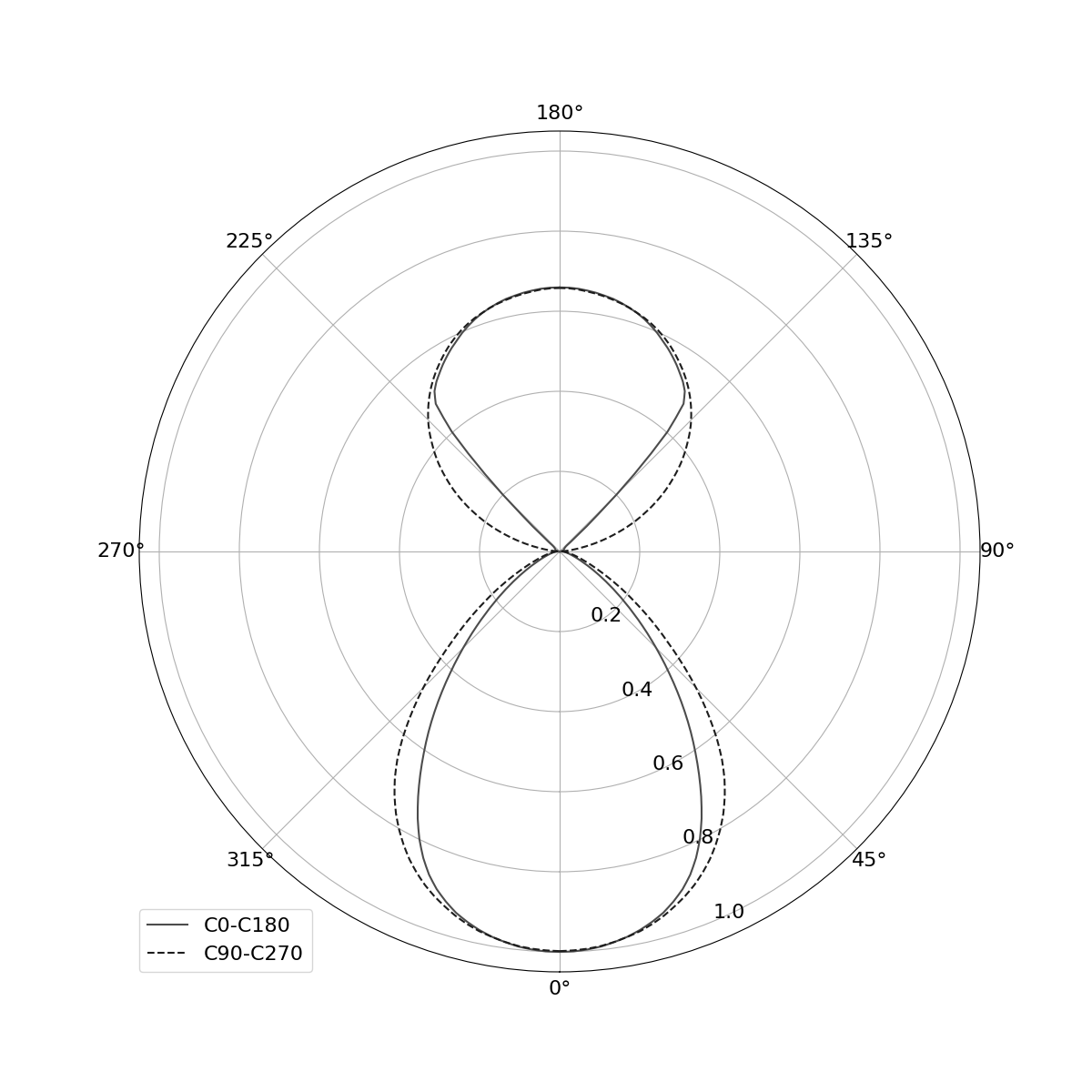

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
