KAMERTON S Line Dark Microcrystal
L2197x44x76 mm Suspended DIRECT/INDIRECT (SDI) LED CC HO (High output), 47+23,5 W, 3446+2786 lm, CCT/CRI: 940 ON/OFF, IP20, color: fog (RAL7038)
5.3202.04I1.1778.G0
TECHNICAL DATA
  • Power 47+23,5 W CC HO (High output)
  • Flux 6232 lm
  • CCT 4000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Dark Microcrystal
  • Mounting type Suspended, direct/indirect (SDI)
  • Power supply 220-240V, 50-60Hz
  • Control ON/OFF
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: fog (RAL7038)
TECHNICAL DRAWING
Dimensions:
2197x44 mm

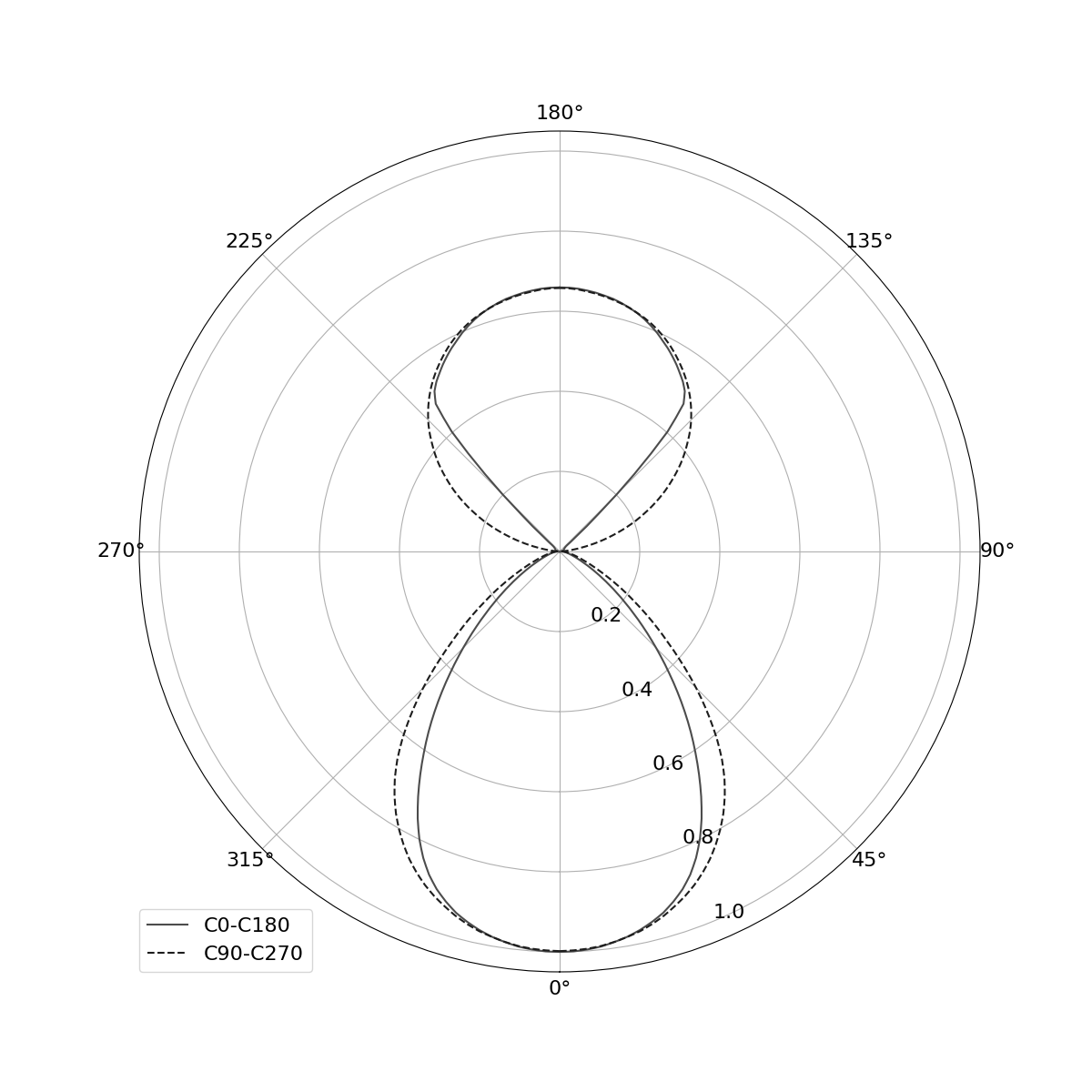

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---

Specifications

Photometric / 3D

Mounting instructions
