KAMERTON Stand Line Dark Microcrystal
L1235x350x2100 mm Standing fixture DIRECT/INDIRECT LED CC HO (High output), 20,2+10,1 W, 1381+1116 lm, CCT/CRI: 930 Casambi, IP20, color: black dust
5.3232.02P1.C678.B0
TECHNICAL DATA
  • Power 20,2+10,1 W CC HO (High output)
  • Flux 2497 lm
  • CCT 3000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Dark Microcrystal
  • Mounting type Standing fixture
  • Power supply 220-240V, 50-60Hz
  • Control Casambi
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: black dust
TECHNICAL DRAWING
Dimensions:
1077x44 mm

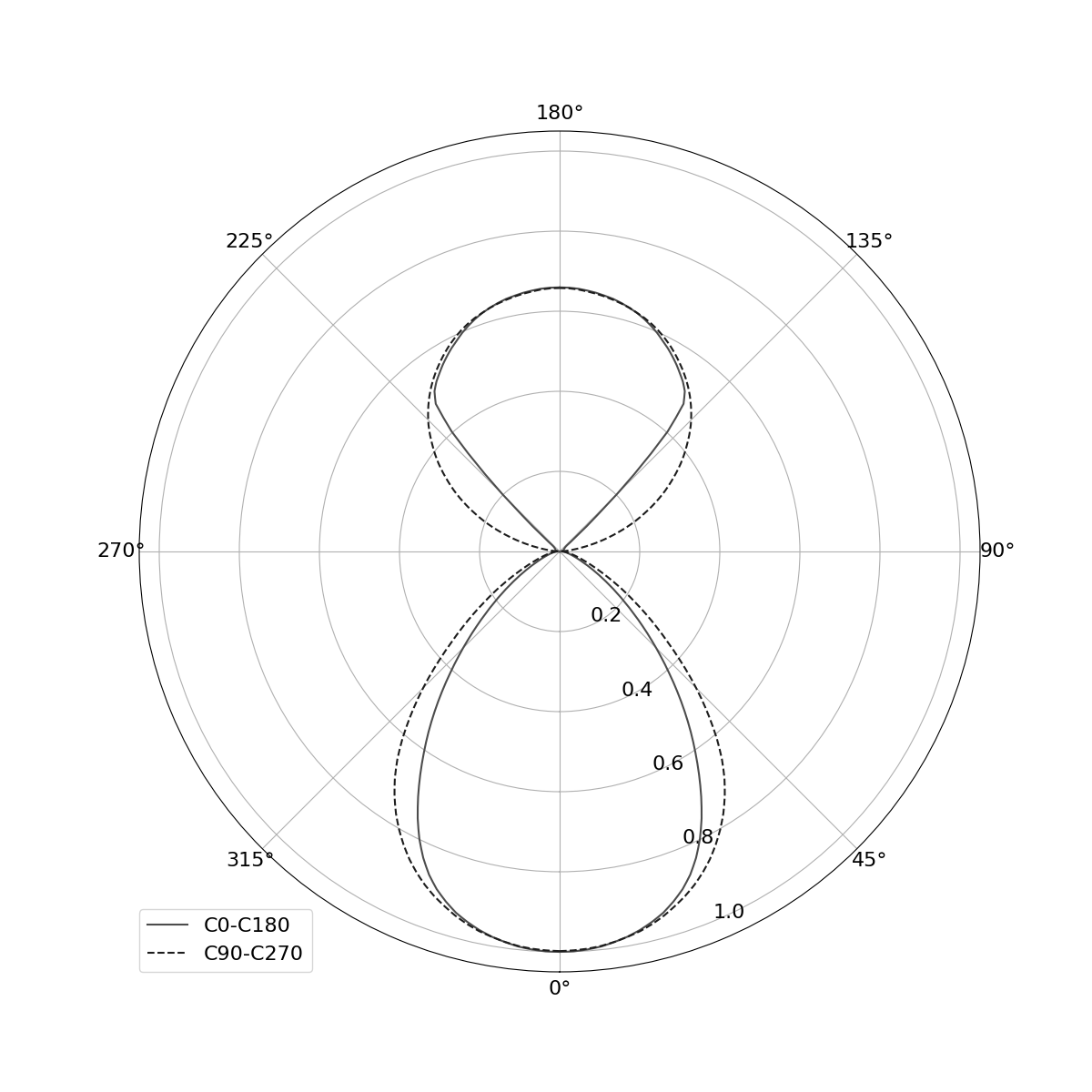

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
