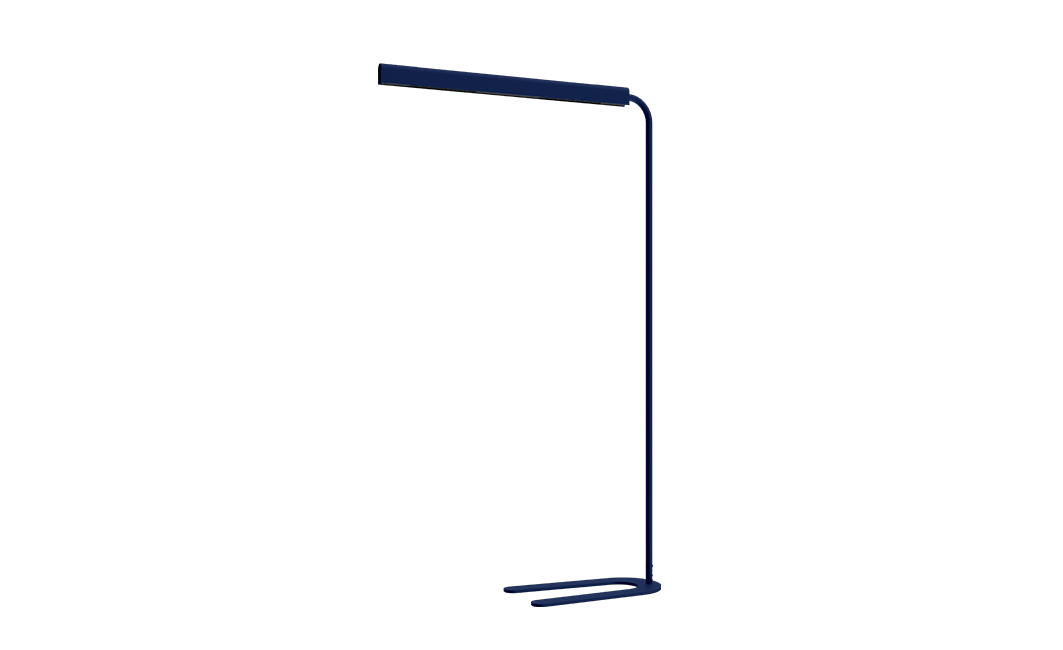

KAMERTON Stand Louver Wide beam (60°) UGR<19
L1235x350x2100 mm Standing fixture DIRECT/INDIRECT LED CC HO (High output), 18,8+10,1 W, 2384+1116 lm, CCT/CRI: 930 ON/OFF, IP20, color: saphire (RAL5003)
5.3231.02P1.167W.S0
TECHNICAL DATA
  • Power 18,8+10,1 W CC HO (High output)
  • Flux 3500 lm
  • CCT 3000 K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Wide beam (UGR<19)
  • Mounting type Standing fixture
  • Power supply 220-240V, 50-60Hz
  • Control ON/OFF
  • Protection Class I
  • IP IP20
  • Material Extruded aluminium profile
  • Finishing powder coated: saphire (RAL5003)
TECHNICAL DRAWING
Dimensions:
1077x44 mm

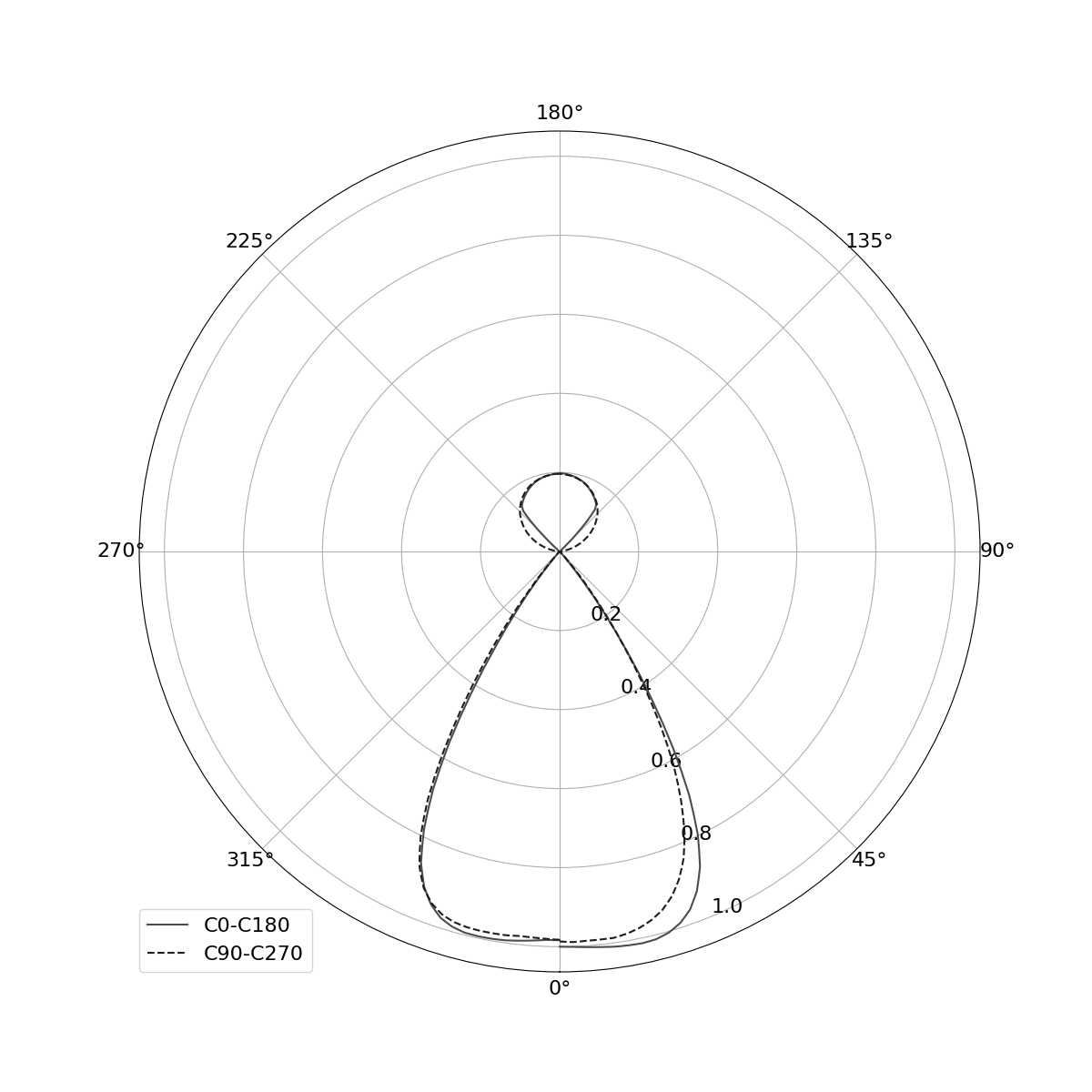

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---

Specifications

Photometric / 3D

Mounting instructions
