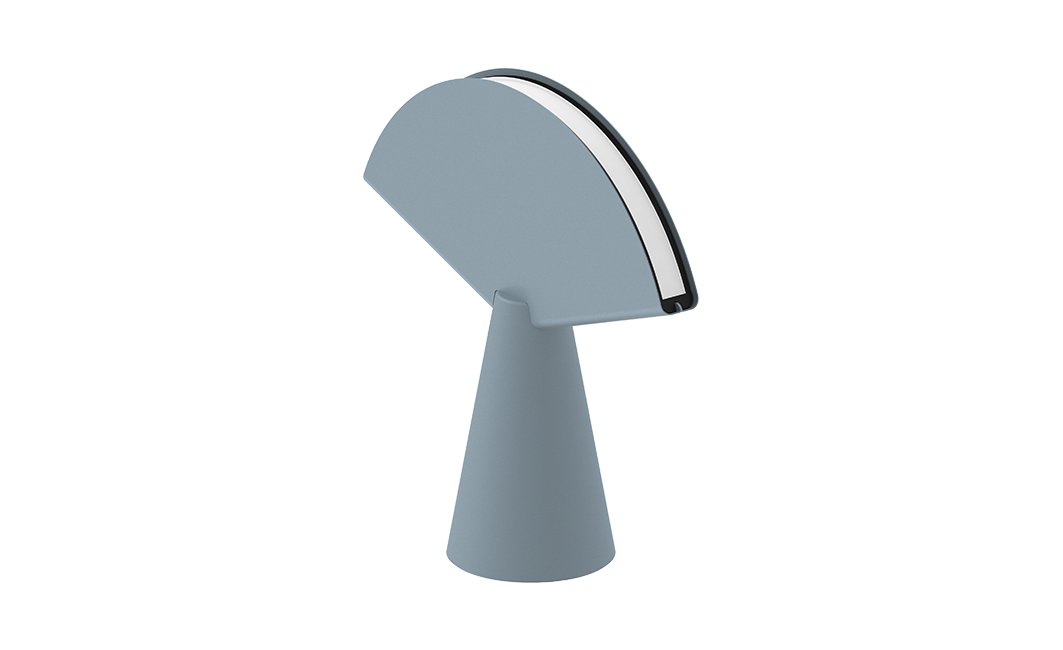

OGI 40 Table Satine
L370x128x380 mm Standing fixture LED CV HE (High efficacy), 12 W, 1212 lm, CCT/CRI: 922-930 dim to warm, IP20, color: cloudy
7.2422.02P1.WA21.C0
TECHNICAL DATA
  • Power 12 W CV HE (High efficacy)
  • Flux 1212 lm
  • CCT 2700-3000K
  • CRI >90
  • SDCM ≤3
  • Durability of LED sources 50.000 h L80 B10
  • Diffuser / Optic Satine
  • Mounting type Standing fixture
  • Power supply 220-240V, 50-60Hz
  • Control Dim to warm
  • Protection Class I
  • IP IP20
  • Material Steel housing
  • Finishing powder coated: cloudy
TECHNICAL DRAWING
Dimensions:
370x128 mm

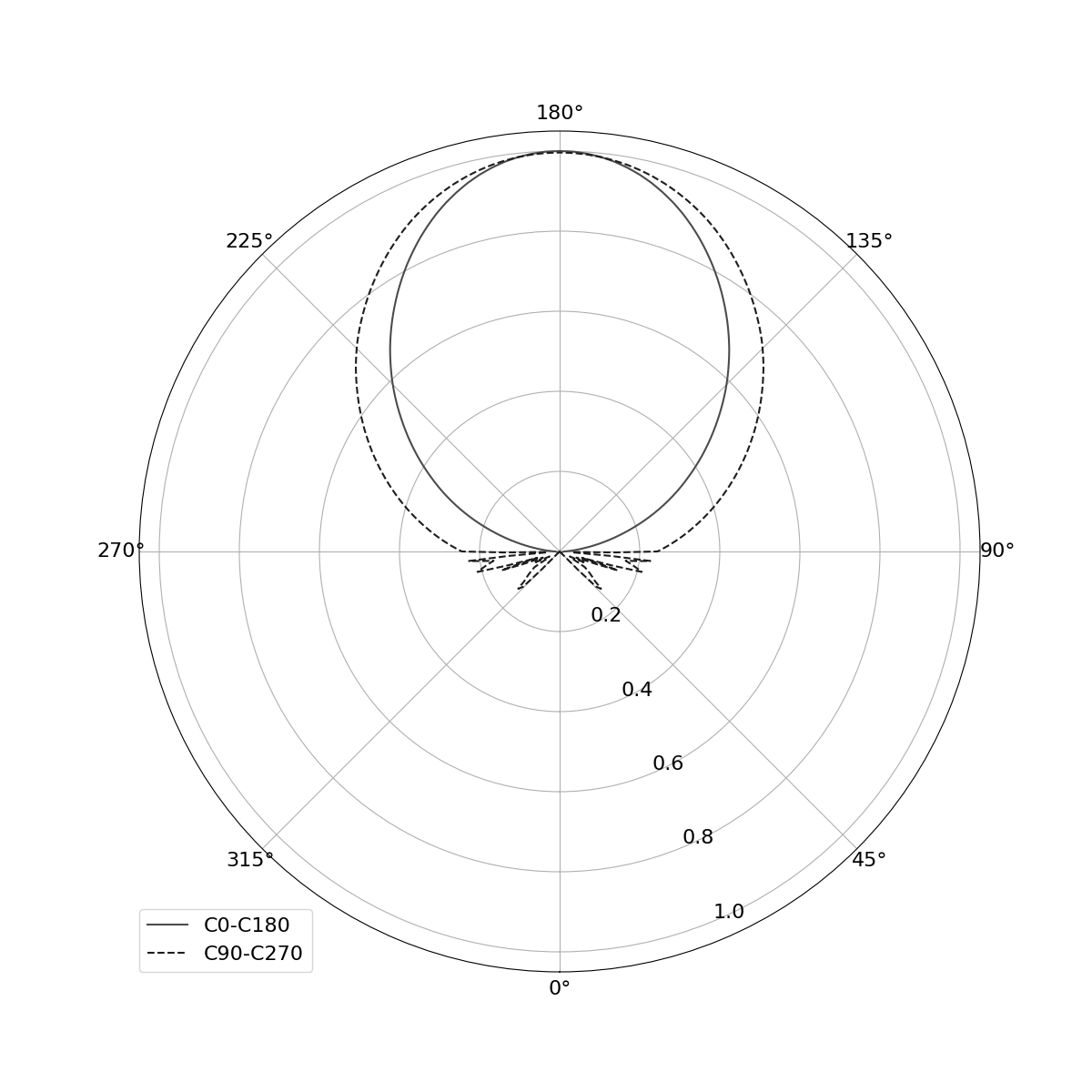

PHOTOMETRIC DATA
Accessories (ordered separately)
Other
  • Other ---
back

Specifications

  • Catalog card
  • Declaration of Conformity

Photometric / 3D

  • LDT file
  • 3D file

Mounting instructions

  • Mounting instructions
