KAMERTON S Louver
Wide beam (60°) UGR<19
L1637x44x76 mm
Suspended DIRECT (SD)
LED CV HO (High output), 28,2 W, 2556 lm, CCT/CRI: 922-930
Dim to warm, IP20, color: cloudy
5.3201.03D1.WA3W.C0
TECHNICAL DATA
-
Power 28,2 W CV HO (High output)
-
Flux 2556 lm
-
CCT 2700-3000K
-
CRI >90
-
SDCM ≤3
-
Durability of LED sources 50.000 h L80 B10
-
Diffuser / Optic Wide beam (UGR<19)
-
Mounting type Suspended, direct (SD)
-
Power supply 220-240V, 50-60Hz
-
Control Dim to warm
-
Protection Class I
-
IP IP20
-
Material Extruded aluminium profile
-
Finishing powder coated: cloudy
TECHNICAL DRAWING
Dimensions:
1637x44
mm

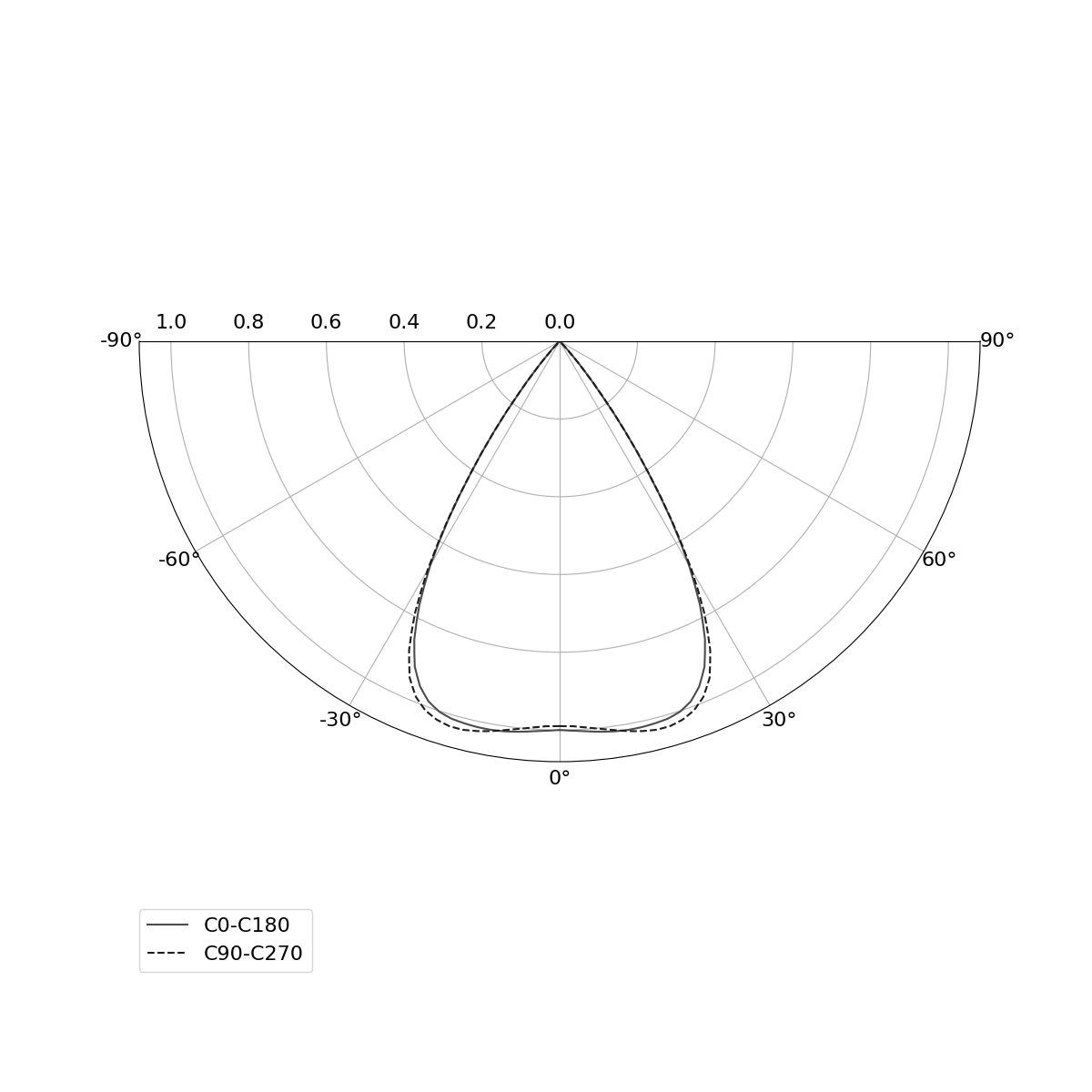

PHOTOMETRIC DATA
Accessories
(ordered separately)
