KAMERTON Stand Line
Dark Microcrystal
L1235x350x2100 mm
Standing fixture DIRECT/INDIRECT
LED CV HO (High output), 20,2+10,1 W, 1284+1038 lm, CCT/CRI: 922-930
Dim to warm, IP20, color: white (RAL9016)
5.3232.02P1.WA38.40
.png?locale=en "white (RAL9016)")
TECHNICAL DATA
-
Power 20,2+10,1 W CV HO (High output)
-
Flux 2322 lm
-
CCT 2700-3000K
-
CRI >90
-
SDCM ≤3
-
Durability of LED sources 50.000 h L80 B10
-
Diffuser / Optic Dark Microcrystal
-
Mounting type Standing fixture
-
Power supply 220-240V, 50-60Hz
-
Control Dim to warm
-
Protection Class I
-
IP IP20
-
Material Extruded aluminium profile
-
Finishing powder coated: white (RAL9016)
TECHNICAL DRAWING
Dimensions:
1077x44
mm

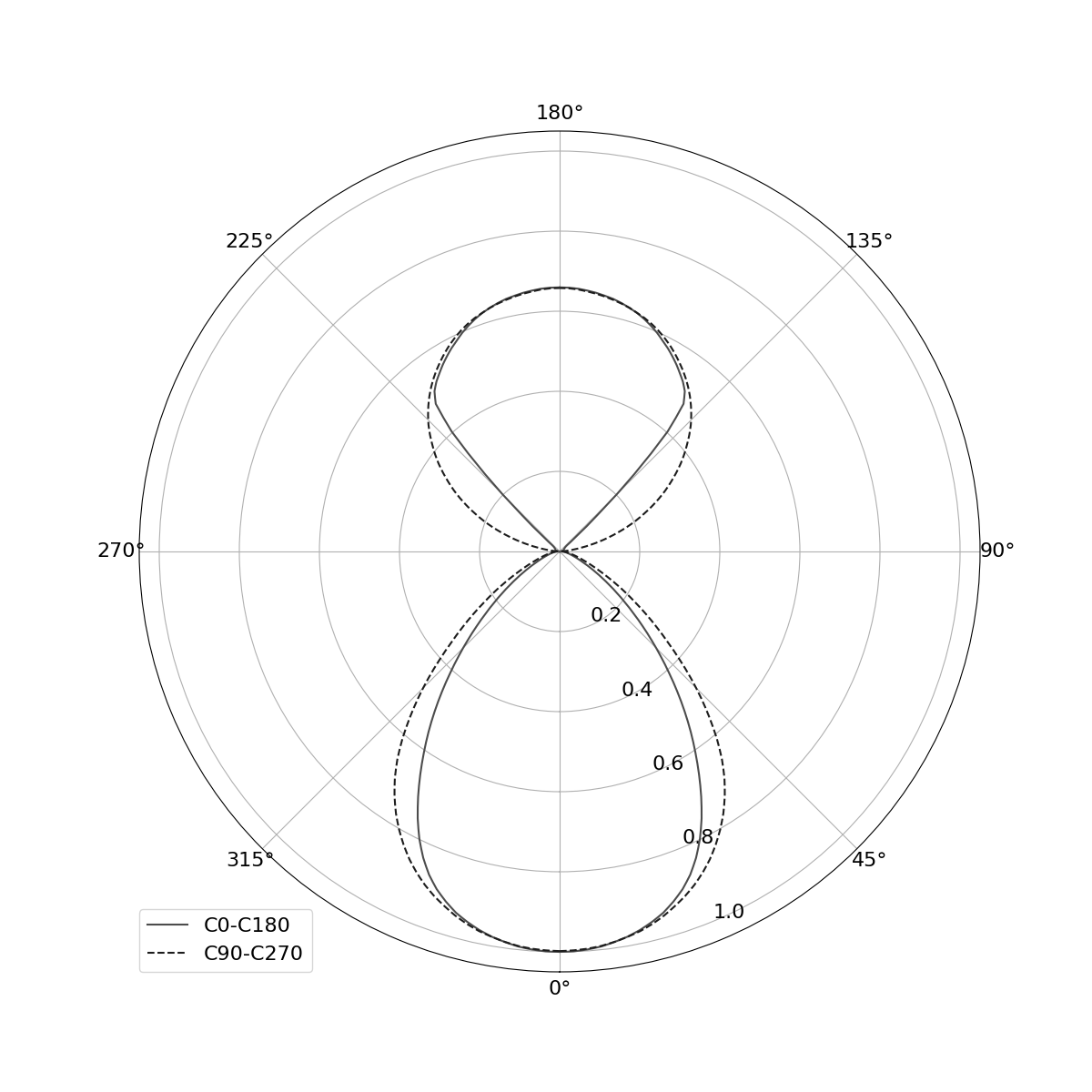

PHOTOMETRIC DATA
