KAMERTON Stand Louver
Wide beam (60°) UGR<19
L1235x350x2100 mm
Standing fixture DIRECT/INDIRECT
LED CV HO (High output), 18,8+10,1 W, 2217+1038 lm, CCT/CRI: 922-930
Dim to warm, IP20, color: fog (RAL7038)
5.3231.02P1.WA3W.G0
%20%E2%80%94%20kopia.png?locale=en "fog (RAL7038)")
TECHNICAL DATA
-
Power 18,8+10,1 W CV HO (High output)
-
Flux 3255 lm
-
CCT 2700-3000K
-
CRI >90
-
SDCM ≤3
-
Durability of LED sources 50.000 h L80 B10
-
Diffuser / Optic Wide beam (UGR<19)
-
Mounting type Standing fixture
-
Power supply 220-240V, 50-60Hz
-
Control Dim to warm
-
Protection Class I
-
IP IP20
-
Material Extruded aluminium profile
-
Finishing powder coated: fog (RAL7038)
TECHNICAL DRAWING
Dimensions:
1077x44
mm

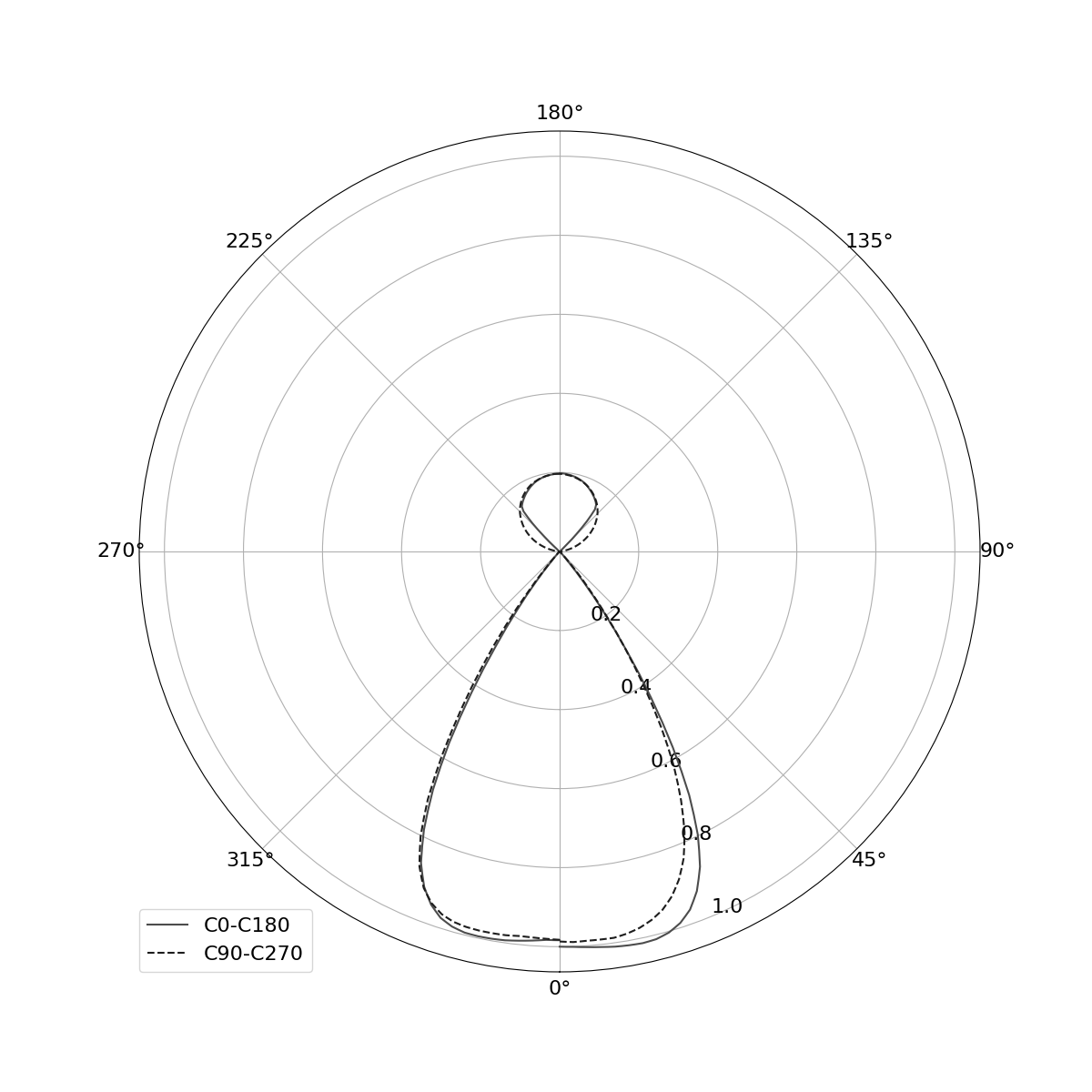

PHOTOMETRIC DATA
Accessories
(ordered separately)
